技术指标:

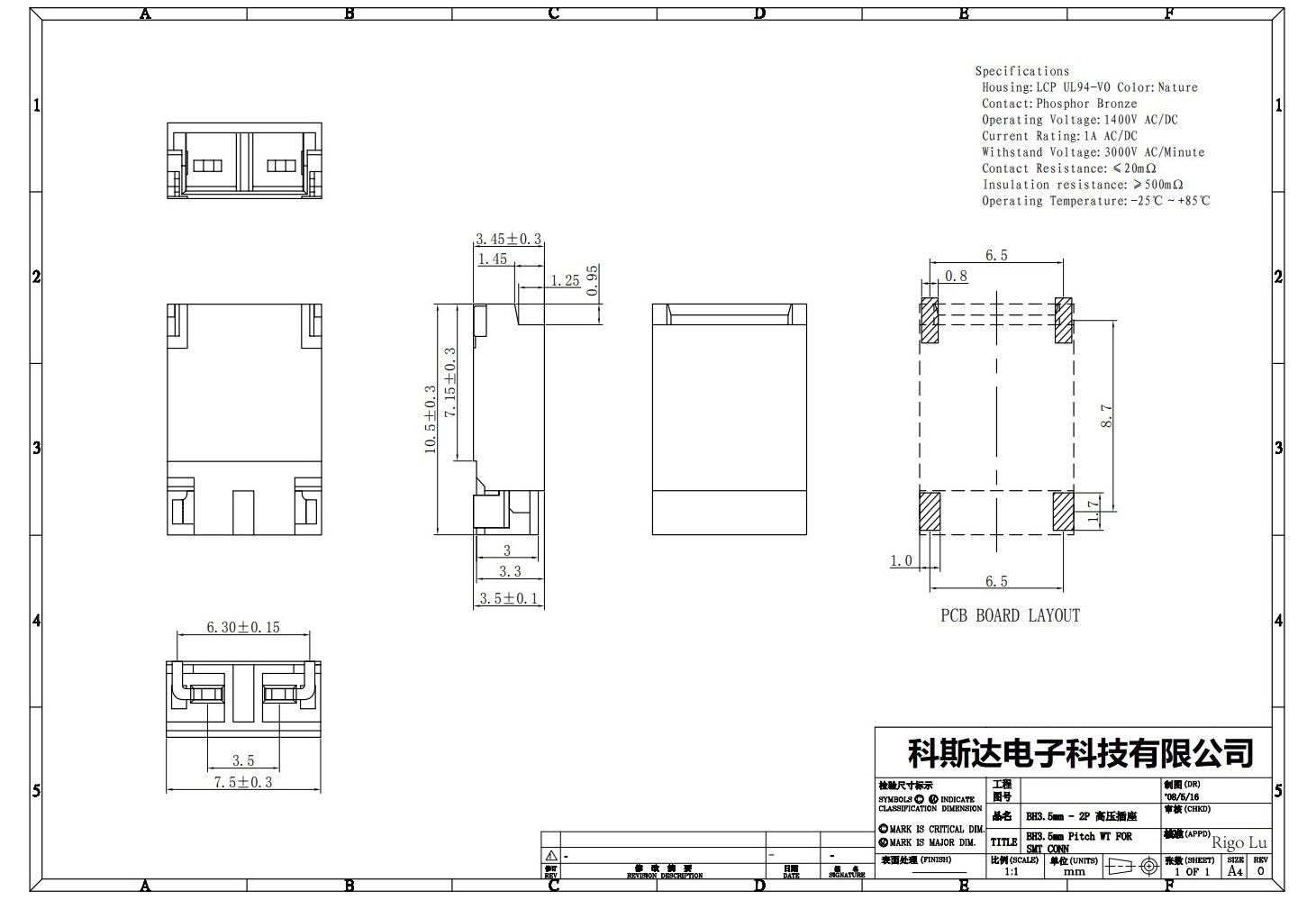

主要技术参数 Main Specifications
线 数（Poles）:02
接触电阻（Contact resistance):≤20m Ω
绝缘电阻（Insulation resistance):≥1000M Ω
额定电压（Rated voltage):1400V AC DC
额定电流（Rated current):1.0A AC DC
耐 电 压（Withstand Voltage):3800V AC/minute
温度范围（Temperature Range):-25°C~+105°C
品牌 科斯达 KOSOD KSDKG
Technical indicators:
Main Specifications
Lines (Poles): 02
Contact resistance: ≤20m Ω
Insulation resistance: ≥1000M Ω
Rated voltage: 1400V AC DC
Rated current: 1.0A AC DC
Withstand Voltage: 3800V AC/minute
Temperature Range: -25°C~+105°C
Brand KOSOD KOSOD KSDKG
