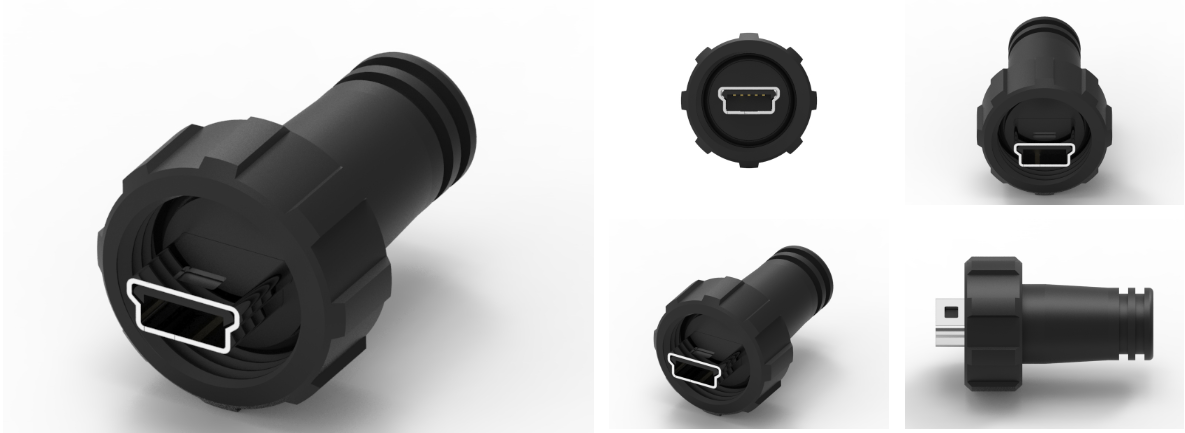

品名：Mini USB 公头5PIN 线端成型式防水连接器
1.材料：
1-1.外壳：PBT UL94V-0；颜色：黑色
1-2.触点：黄铜
1-3.关闭：SPCC
1-4.关闭：SPCC
1-5.螺母：PBT UL94V-0
1-6.O型圈：NBR（1*8）；颜色：黑色
2.完成：
2-1. 接触区域：
金色闪光
焊接区域：亮锡
2-2.外壳：镍
2-3.外壳：镍
3.电气规格：
3-1. 额定电流：1A
3-2.额定电压：30V
3-3.防水等级：IPX7
4.环境：
4-1.工作温度：-20℃~85℃
品牌：科斯达开关KSDKG
产地：中国东莞
Mini USB 公头 5PIN 线端成型防水连接器概述
Mini USB 公头 5PIN 线端成型防水连接器是一种用于数据传输和电力供应的连接器，其设计专为恶劣环境及户外使用而优化。该连接器常见于各种便携设备和工业应用中，特别是在需要防水和防尘功能的场所。
主要特点
1.防水防尘设计：
高防护等级：通常具有 IP67 或更高的防护等级，能够有效防止水和灰尘的侵入，适用于潮湿和恶劣环境。
密封结构：具有防水密封圈，确保连接器在插接后能保持良好的密封性能。
2.高兼容性：
Mini USB 接口：兼容 USB 2.0 标准，适用于多种设备数据传输和充电需求。
广泛适用：常用于数码相机、音频播放器、便携式设备和其他电子产品。
3.线端成型：
简化安装：线端成型设计使得连接器与电缆之间的连接更加牢固，减少了人工焊接的过程，降低了安装难度。
提高可靠性：成型连接保证了良好的电气接触和机械强度，适合频繁插拔的环境。
4.耐用性：
材质选择：采用高强度塑料及耐腐蚀金属，能够抵抗常见的化学物质侵害，适合多种工业应用。
耐插拔性：设计能够承受多次插拔而不影响性能，适合用在需要频繁连接和断开的场景。
应用领域
1.消费电子产品：手机、MP3 播放器、相机等便携电子设备的数据传输和充电。
2.工业设备：在工厂自动化、机器人和监控系统中用于信号和电源连接。
3.汽车：用于汽车音响、导航设备和其他车载电子设备。
4.医疗设备：在医疗器械中用于数据和电力连接，尤其在潮湿环境中更为重要。
使用注意事项
1.检查密封性：在连接和拆卸时，检查密封圈是否完好，确保防水性能。
2.遵循规范使用：按照产品说明书使用，确保不超过额定电流和电压范围，防止设备损坏。
3.保持清洁：定期清洁连接器，防止污物入侵影响连接性能。
4.安装时注意方向：插入连接器时注意其方向，不要用力过猛，避免损坏连接器。
总结
Mini USB 公头 5PIN 线端成型防水连接器在提供便捷数据传输和可靠电源连接的同时，其防水性能使其在各种应用场景下都能工作稳定。如果您有进一步的问题或需要咨询，欢迎联系技术员！
Product Name: Mini USB Male 5PIN Wire End Forming Waterproof Connector
1. Materials:
1-1. Shell: PBT UL94V-0； Color: Black
1-2. Contact: Brass
1-3. Close: SPCC
1-4. Close: SPCC
1-5. Nut: PBT UL94V-0
1-6. O-ring: NBR（1*8）； Color: Black
2. Complete:
2-1. Contact area:
Golden flash
Welding area: Bright tin
2-2. Shell: Nickel
2-3. Shell: Nickel
3. Electrical specifications:
3-1. Rated current: 1A
3-2. Rated voltage: 30V
3-3. Waterproof grade: IPX7
4. Environment:
4-1. Working temperature:- 20℃~85℃
Brand: Coaster Switch KSDKG
Origin: Dongguan, China
Overview of Mini USB Male 5PIN Wire End Forming Waterproof Connector
The Mini USB male 5PIN wire end molded waterproof connector is a connector designed for data transmission and power supply, optimized for harsh environments and outdoor use. This connector is commonly used in various portable devices and industrial applications, especially in places that require waterproof and dustproof functions.
main features
1. Waterproof and dustproof design:
High protection level: usually with an IP67 or higher protection level, it can effectively prevent the intrusion of water and dust, suitable for humid and harsh environments.
Sealing structure: It has a waterproof sealing ring to ensure that the connector maintains good sealing performance after insertion.
2. High compatibility:
Mini USB interface: compatible with USB 2.0 standard, suitable for various device data transfer and charging needs.
Widely applicable: commonly used in digital cameras, audio players, portable devices, and other electronic products.
3. End forming:
Simplified installation: The wire end forming design makes the connection between the connector and the cable more secure, reduces the manual welding process, and lowers the installation difficulty.
Improving reliability: The molded connection ensures good electrical contact and mechanical strength, making it suitable for environments with frequent plugging and unplugging.
4. Durability:
Material selection: Made of high-strength plastic and corrosion-resistant metal, capable of resisting common chemical substances and suitable for various industrial applications.
Plug in resistance: Designed to withstand multiple plug ins without affecting performance, suitable for use in scenarios that require frequent connections and disconnections.
application area
1. Consumer electronic products: data transmission and charging of portable electronic devices such as mobile phones, MP3 players, cameras, etc.
2. Industrial equipment: Used for signal and power connections in factory automation, robotics, and monitoring systems.
3. Automobile: Used for car audio, navigation equipment, and other in car electronic devices.
4. Medical equipment: Used for data and power connections in medical devices, especially in humid environments.
Precautions for use
1. Check sealing: When connecting and disassembling, check whether the sealing ring is intact to ensure waterproof performance.
2. Follow the standard usage: Use according to the product manual to ensure that it does not exceed the rated current and voltage range, and prevent equipment damage.
3. Keep clean: Regularly clean the connector to prevent dirt from invading and affecting the connection performance.
4. Pay attention to the direction during installation: When inserting the connector, pay attention to its direction and do not apply too much force to avoid damaging the connector.
summary
The Mini USB male 5PIN wire end molded waterproof connector provides convenient data transmission and reliable power connection, while its waterproof performance ensures stable operation in various application scenarios. If you have further questions or need consultation, please feel free to contact the technician!
