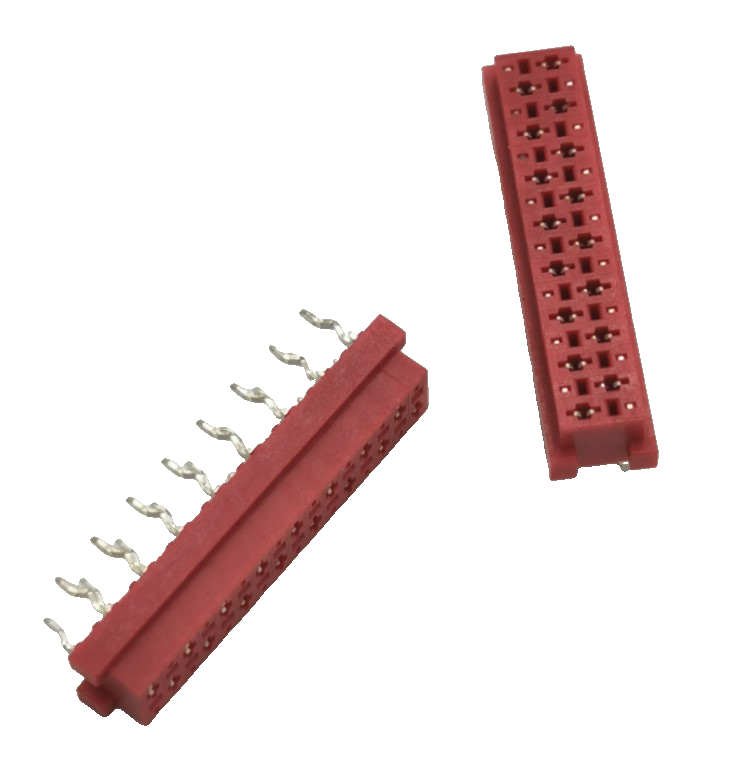

MRC连接器技术指标:
额定电流1.0AMP
接触电阻10mΩ Max
介电强度Min 1000VRMS
机械寿命Min 500 cycles
工作温度﹣40℃ to +105℃
套筒Brass CuZn36Pb3(C36000)
接触镀层Au over Ni
连接销Φ0.41
绝缘材料PPS+30%GF(UL94V-0)
Pin 计数:4P/ 6P/ 8P/ 10P/ 12P/ 14P/ 16P/ 18P/ 20P
品牌 科斯达 KOSOD KSDKG
MRC connector technical indicators:
Rated current 1.0AMP
Contact resistance 10mΩ Max
Dielectric strength Min 1000VRMS
Mechanical life Min 500 cycles
Operating temperature -40℃ to +105℃
Sleeve Brass CuZn36Pb3 (C36000)
Contact Plating Au over Ni
Connecting pin Φ0.41
Insulation material PPS+30%GF (UL94V-0)
Pin count: 4P/ 6P/ 8P/ 10P/ 12P/ 14P/ 16P/ 18P/ 20P
Brand KOSOD KOSOD KSDKG
