KSD-PT Series 技术特性
标准规范
KSD-PT Series密封电源防水钮子开关系列
最高25A，24VDC。
电气寿命：10000次循环
接触电阻：初始最大50毫欧（切换端子）
绝缘电阻：初始最小1000M欧姆
绝缘强度：初始最低2500V（终端切换）
工作温度：-40°C至+85°C
品牌：科斯达开关 KSDKG/KOSOD SWITCH/KESIDA
产品应用：医疗电器、航模、无人机、灯具照明、通讯、控制手柄、速控设备、新能源、航模设备、仪表仪器、小家电、汽车等领域
科斯达开关厂的KSD-PT Series系列密封电源钮子开关, 采用获得专利的单件注塑面板和肘节密封, 是非常适合苛刻、肮脏、多尘和潮湿环境的坚固型面板安装多功能开关。适用建筑、农业、物料输送以及工业设备的性能要求。
KSD-PT Series密封电源钮子开关符合通用的 IP66/IP68 密封等级, 用于保持功能的电气额定值为 15 amps, 用于瞬间功能的额定值为10 amps, 并已通过 IEC/UL 61058-1 认证。
KSD-PT Series Technical characteristics
standard specification
KSD-PT Series Sealed Power Supply Waterproof Button Switch Series
Maximum 25A, 24VDC.
Electrical lifespan: 10000 cycles
Contact resistance: Initial maximum 50 milliohms (switching terminal)
Insulation resistance: initial minimum 1000M ohms
Insulation strength: initial minimum 2500V (terminal switching)
Working temperature: -40 ° C to+85 ° C
Brand: Coaster Switch KSDKG/KOSOD SWITCH/KESIDA
Product applications: medical appliances, model aircraft, drones, lighting fixtures, communication, control handles, speed control equipment, new energy, model aircraft equipment, instrumentation, small appliances, automobiles and other fields

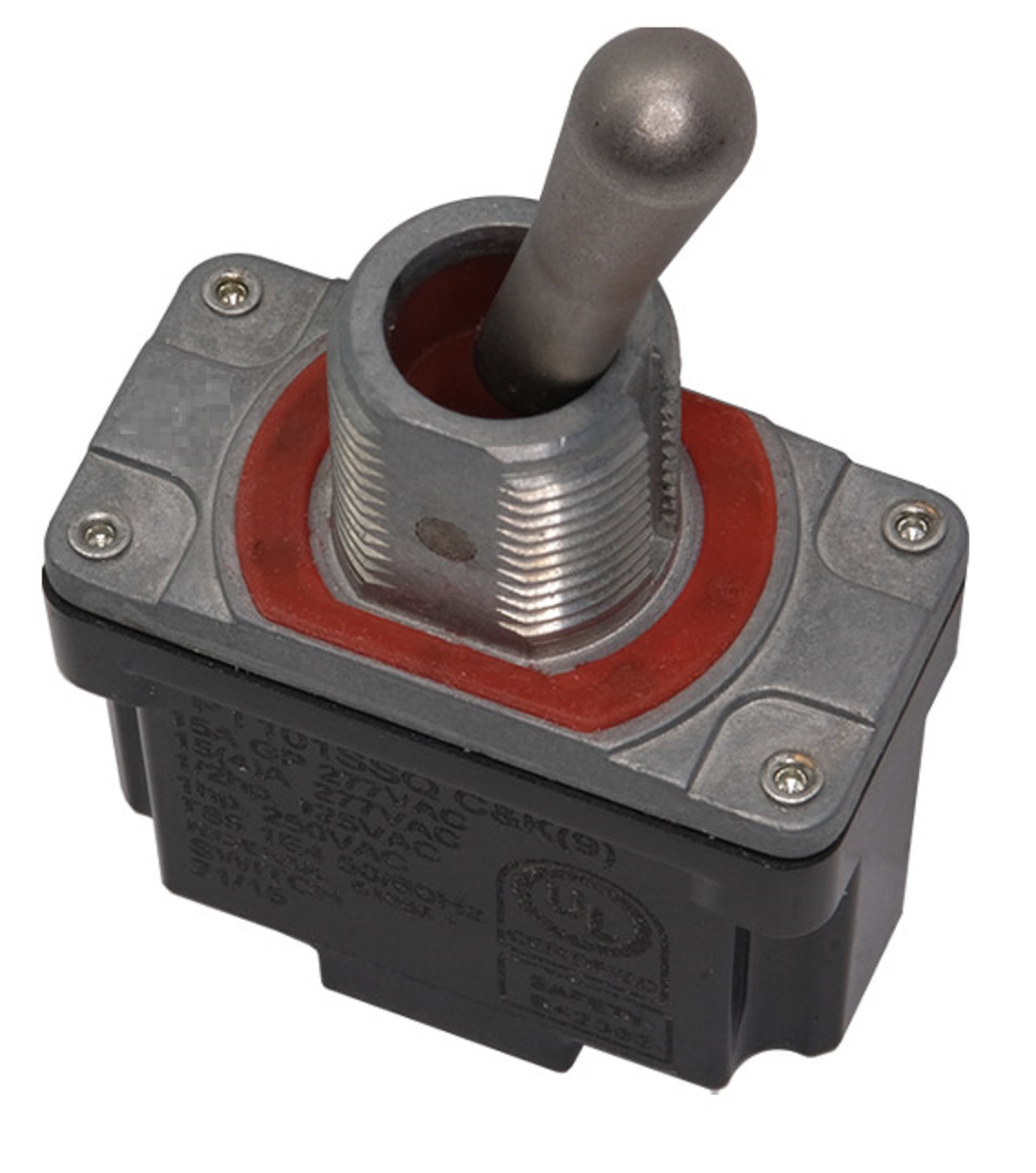

The KSD-PT Series sealed power toggle switch from Costa Switch Factory uses patented single piece injection molded panels and toggle seals, making it a sturdy panel mounted multifunctional switch that is ideal for harsh, dirty, dusty, and humid environments. Applicable performance requirements for construction, agriculture, material transportation, and industrial equipment.
The KSD-PT Series sealed power toggle switch complies with the universal IP66/IP68 sealing rating, with an electrical rating of 15 amps for maintaining functionality and 10 amps for momentary functionality, and has been certified by IEC/UL 61058-1.
