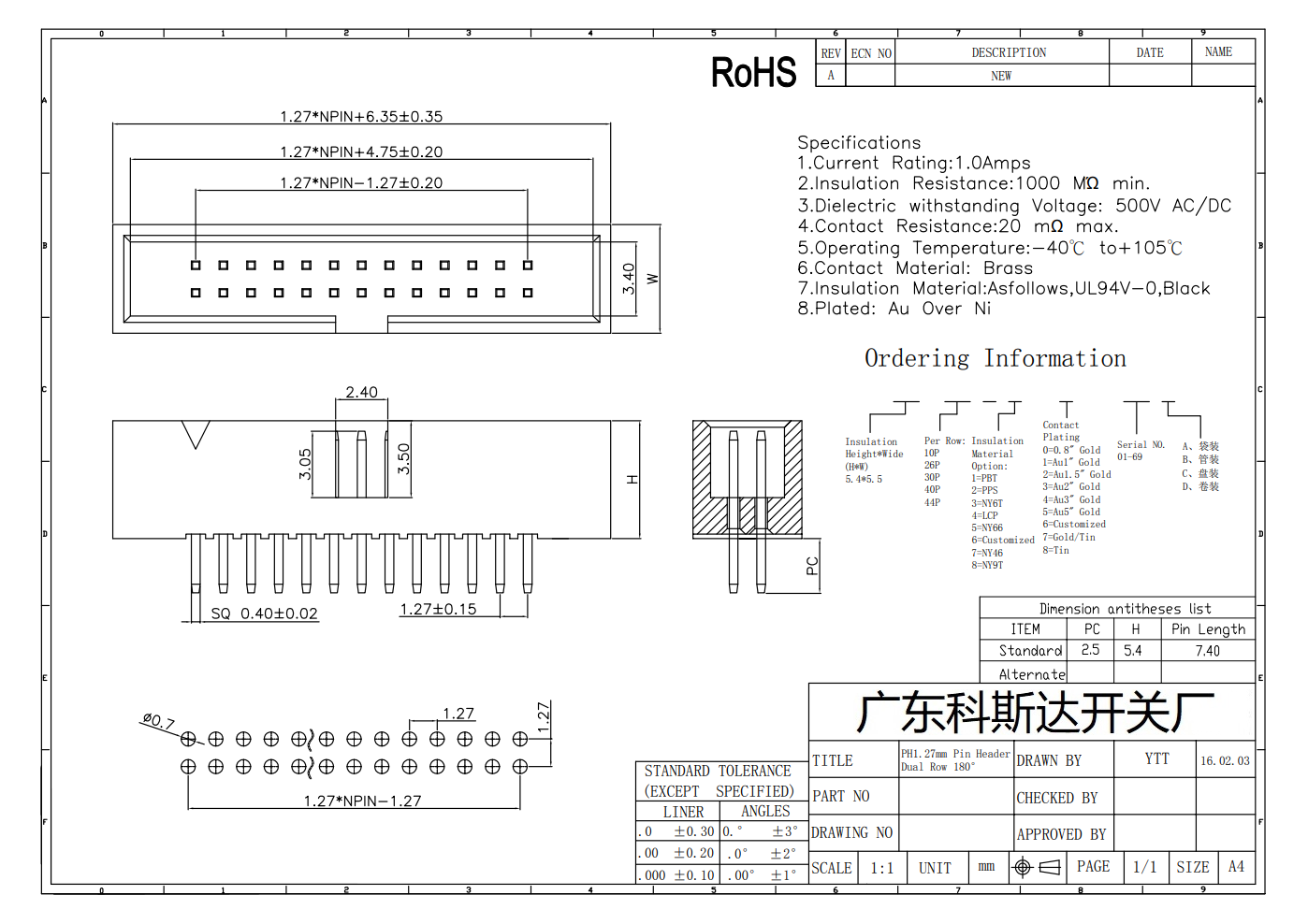

技术指标:
规范:
额定电流: 1A
绝缘电阻: 1000mΩ min
介质耐压: 500V AC
接触电阻: 20mΩ max
工作温度: -40°C to +105°C
接触材料: brass
绝缘材料: NY9T
电镀: Au over Ni
品牌 科斯达 KOSOD KSDKG
Technical indicators:
specification:
Rated current: 1A
Insulation resistance: 1000mΩ min
Dielectric withstand voltage: 500V AC
Contact Resistance: 20mΩ max
Operating temperature: -40°C to +105°C
Contact material: brass
Insulation material: NY9T
Plating: Au over Ni
Brand KOSOD KOSOD KSDKG
