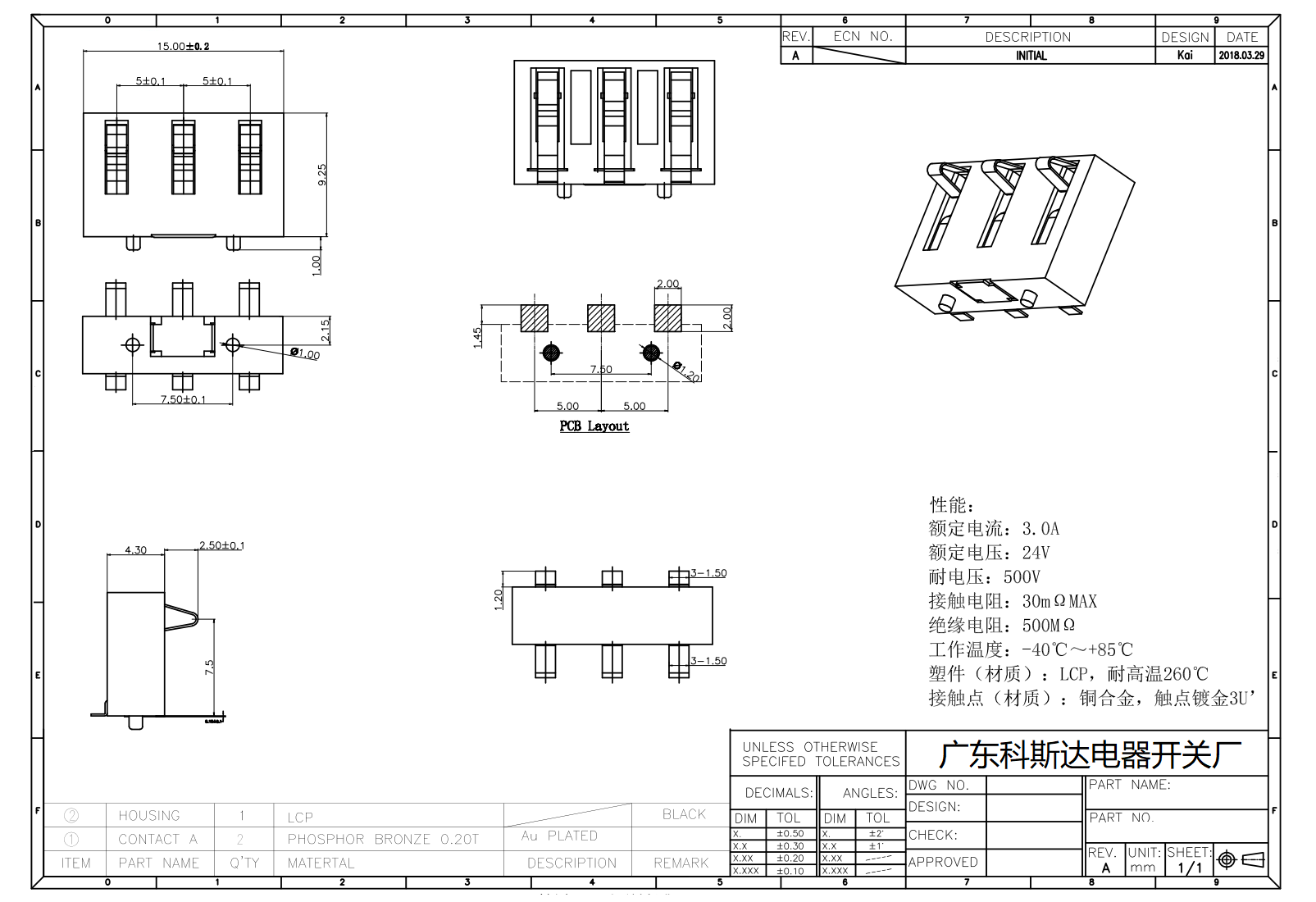

KSD-TP-2-301

KSD-TP-2-301

  • 产品特性
  • 应用范围

图纸下载 样品申请


产品名称:手机电池连接器 弹片电池连接器

  牌:科斯达  KSDKG / KOSOD SWITCH

产品寿命:5000

产品认证:ROHS

手机弹片电池座产品参数:

     额定电流:2A  5A

     额定电压:12V 24V

     耐电压:500V

     接触电阻:30mΩMAX

     绝缘电阻:500MΩ

     工作温度:-40℃~+85

     塑件(材质):LCP,耐高温260

     接触点(材质):磷铜,镀金



电池座应用范围:

       1、影音产品:智能音响,无线蓝牙耳机,麦克风等;
       2数码产品:数码相机、数码摄像机等;
       3遥控器:车辆、点卷门、家庭防盗产品之遥控器;
       4通讯产品:手机、对讲机、电话机、楼宇设备、PDA等;
       5家用电器:扫地机、电视机、微波炉、电饭煲、电子人体秤、



弹片电池座应用智能家居等;
      6安防产品:指纹锁,可视门铃对讲机、监视器等;
      7玩具:电子玩具,儿童电动车等;
      8电脑产品:笔记本电脑,摄像头、录音笔等;
      9健身器材:跑度机、按摩椅,筋膜枪等;

      10医疗器材:血压计、电子体温计、血糖仪等。

      11飞行器:无人机、航模。

      12美容产品:美甲打磨机,美容仪等

      13其他电子:点菜机、手持扫描仪、工业数据采集器。



手机电池连接器 研发注意事项:

      一、电池连接器分为正压式和侧压式,正压式是指上下压接触,侧压式是指侧推进去接触。

      二、产品最佳行程是总行程的一半到三分之二,压到底容易把弹片压坏,压的少则会接触不良。

      三、产品大部分是卷装出货,可以贴片机贴片,个别几款未达到量目前还是散装。

      四、重点:弹片不能用来滑动接触压接,以免出现弹片变形。

      五、电池座正常使用寿命是5000次。



Product name: mobile phone battery connector battery connector battery jack battery socket

Brand: KSDKG / KOSOD SWITCH

Product life: 5000 times

Product Certification: ROHS

Product parameters of mobile phone shrapnel battery holder:

     Rated current: 2A 5A

     Rated voltage: 12V 24V

     Withstand voltage: 500V

     Contact resistance: 30mΩMAX

     Insulation resistance: 500MΩ

     Working temperature: -40℃~+85℃

     Plastic parts (material): LCP, high temperature resistance 260℃

     Contact point (material): phosphor bronze, gold-plated



Application range of battery holder:

       1. Audio-visual products: smart speakers, wireless Bluetooth headsets, microphones, etc.;

       2. Digital products: digital cameras, digital video cameras, etc.;

       3. Remote control: remote control for vehicles, rolling doors, and home anti-theft products;

       4. Communication products: mobile phones, walkie-talkies, telephones, building equipment, PDAs, etc.;

       5. Household appliances: sweepers, televisions, microwave ovens, rice cookers, electronic body scales,



Shrapnel battery holders are used in smart homes, etc.;

      6. Security products: fingerprint locks, video doorbell intercoms, monitors, etc.;

      7. Toys: electronic toys, children's electric cars, etc.;

      8. Computer products: notebook computers, cameras, voice recorders, etc.;

      9. Fitness equipment: running machine, massage chair, fascia gun, etc.;

      10. Medical equipment: sphygmomanometer, electronic thermometer, blood glucose meter, etc.

      11. Aircraft: UAV, model airplane.

      12. Beauty products: nail polisher, beauty instrument, etc.

      13. Other electronics: ordering machine, handheld scanner, industrial data collector.



Mobile phone battery connector R&D considerations:

      1. The battery connector is divided into positive pressure type and side pressure type. The positive pressure type refers to the up and down pressure contact, and the side pressure type refers to the side push to contact.

      2. The best stroke of the product is half to two-thirds of the total stroke. It is easy to crush the shrapnel when pressed to the end, and the contact will be poor if it is pressed too little.

      3. Most of the products are shipped in rolls, which can be mounted on a placement machine, but some of the products are still in bulk at present.

      4. Important: Shrapnel cannot be used for sliding contact crimping to avoid deformation of the shrapnel.

      5. The normal service life of the battery holder is 5000 times.
