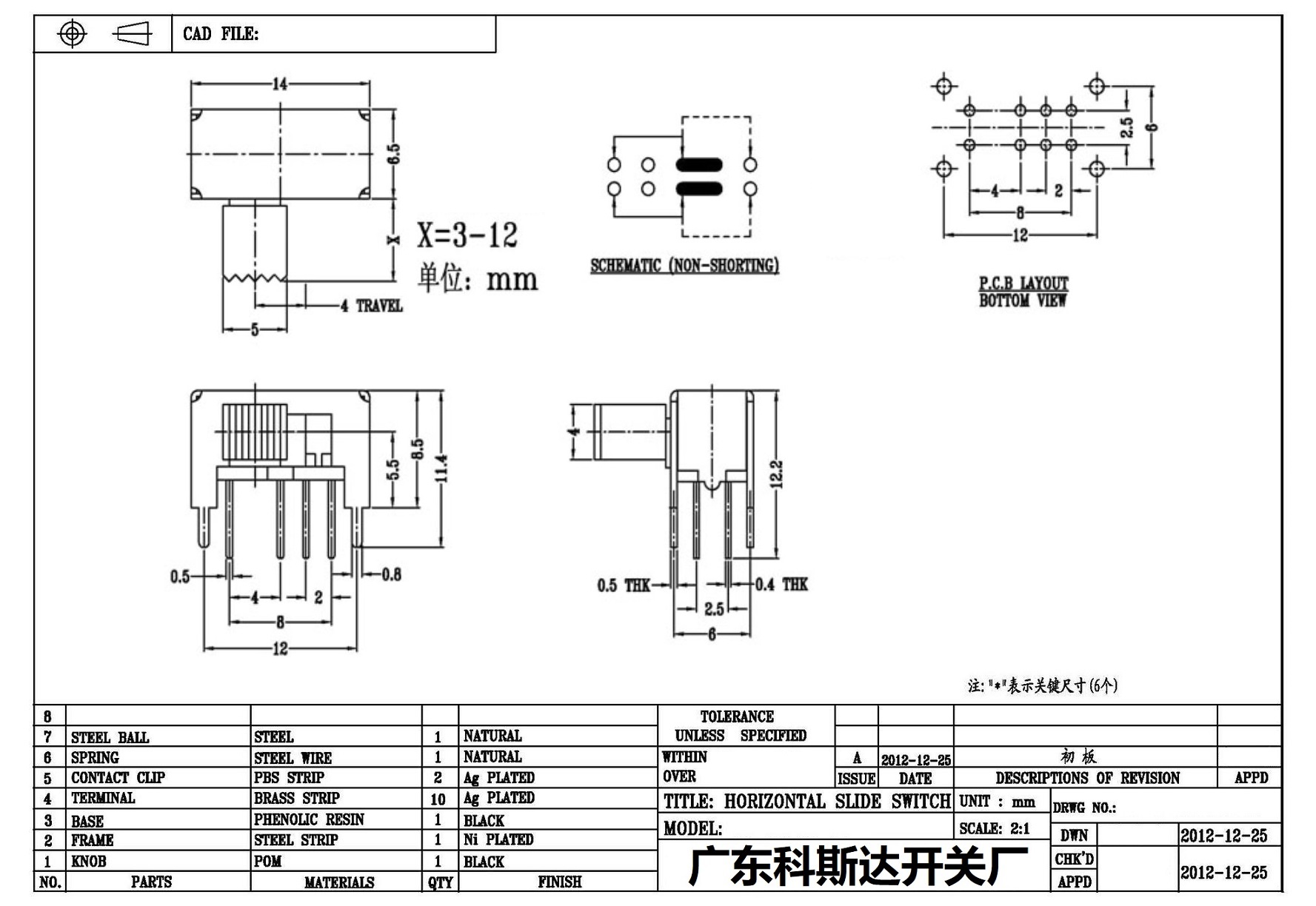

KSD-SK-22H11

KSD-SK-22H11

  • 产品特性
  • 应用范围

图纸下载 样品申请


卧式拨动开关侧拨技术指标

1. 额定负荷: DC 12V 30V  0.3A 0.5A

2. 接触阻抗: 50mΩ

3. 绝缘阻抗: 100mΩ DC500V

4. 耐焊温度: 250±5°5s

5. 使用寿命: 10,000 cycles

6. 使用温度: -25 to 80

7. 使用湿度: 85% RH

8. 操作力 : 160gf 180gf 260gf  可定制

9.手柄长度:2MM-10MM      可定制

应用:汽车电器、工控设备、数码产品、安防、电脑、通讯产品、家用电器、智能交通等。



Horizontal toggle switch side dial/horizontal slide switch technical indicators

1. Rated load: DC 12V 30V 0.3A 0.5A

2. Contact impedance: 50mΩ

3. Insulation resistance: 100mΩ DC500V

4. Soldering resistance temperature: 250±5°5s

5. Service life: 10,000 cycles

6. Operating temperature: -25 to 80

7. Operating humidity: 85% RH

8. Operating force: 160gf 180gf 260gf can be customized

9. Handle length: 2MM-10MM can be customized

Application: automotive electrical appliances, industrial control equipment, digital products, security, computers, communication products, household appliances, intelligent transportation, etc.
