技术指标:
额定电流: 1.0AMP AC/DC
额定电压: 100V AC/DC
接触电阻: 20mΩ max
耐电压: 250V AC/minute
绝缘电阻: 100mΩ min
工作温度: -25°C to + 85°C
接触材料: Brass
接触镀层: Au or Sn over Ni
绝缘材料: PA9T+30%GF (UL94V-0)
MPQ:1500PCS

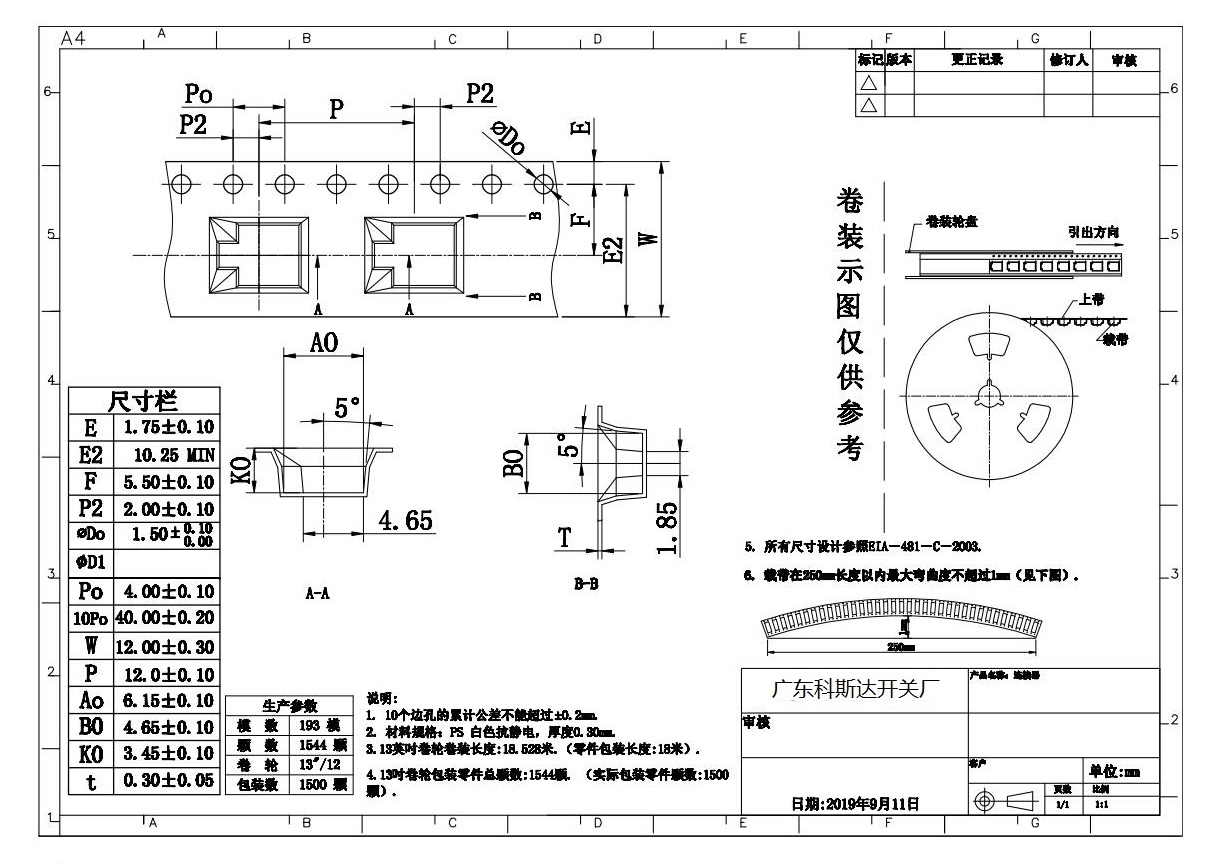

包装:Reel
交货时间:7~15 Day
UL: Yes
符合ROHS
品牌 科斯达 KOSOD KSDKG
Technical indicators:
Rated current: 1.0AMP AC/DC
Rated voltage: 100V AC/DC
Contact Resistance: 20mΩ max
Withstand voltage: 250V AC/minute
Insulation resistance: 100mΩ min
Operating temperature: -25°C to + 85°C
Contact material: Brass
Contact Plating: Au or Sn over Ni
Insulation material: PA9T+30%GF (UL94V-0)
MPQ: 1500PCS
Packaging:Reel
Delivery time: 7~15 Days
UL: Yes
Compliant with ROHS
Brand KOSOD KOSOD KSDKG
